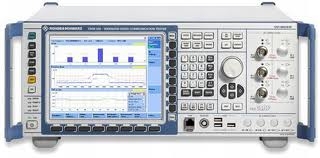

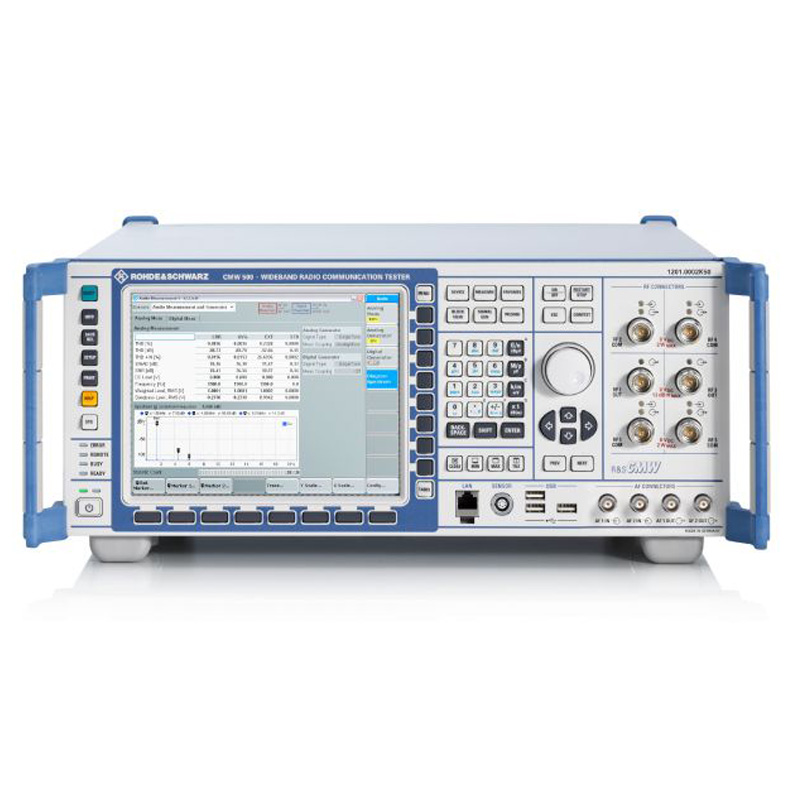

Rohde & Schwarz CMW500

The R&S CMW500 marks the entry of a new generation of test equipment from Rohde & Schwarz for fast and precise production of current and future wireless devices.

The R&S Smart Alignment high-speed test concept plus the all-in-one architecture with integrated vector signal generator and analyzer are the prerequisites for state-of-the-art non-signaling alignment approaches.

The extreme scalability, test speed, and measurement accuracy of the R&S CMW500 are the assurance for minimum test costs..

Features:

• Multi technology solution: GSM / GPRS / EDGE / WCDMA / mobile WiMAX / CDMA2000 / TD-SCDMA / LTE
• Base model: general-purpose RF power meter and CW generator with List modes for fast calibration of wireless devices
• Vector Signal Analyzer (VSA) for transmitter verification
• Vector Signal Generator (VSG) for expanded receiver testing: ARB mode for short setup times or realtime mode for complex signals with high data volume
• Reference RF power measurements with direct connection for R&S NRP power sensors
• Easy connection to wireless devices with complex RF architecture using the integrated RF interface
• State-of-the-art Graphical User Interface (GUI)
• SCPI remote control via LAN/GPIB interface
• Ready for LXI Class C
• Process controller with Windows XP operating system for test routines and remote control via Windows Remote Desktop

Option Configurations

B100A	Baseband Measurement Unit, CMW module H100A
B110A	ARB + Realtime Baseband Generator Module
B200A	Signaling Unit Universal, GSM/CDMA2000/1xEV-DO
B210A	GSM/GPRS/EDGE Signaling Extension Module
B220A	CDMA2000 1xRTT signaling module
B230A	CDMA2000 1xEV-DO signaling module
B300A	Signaling Unit, Wideband (SUW)
B450A	Data application unit
B510A	Four digital IQ interface
B570B	Extra RF Converter (TRX)
B590A	Extra RF front end, basic
B612A	IEEE Bus Interface Module (single connector)
B620A	Digital video interface
B660A	Option carrier
B661A	Ethernet switch
B690A	OCXO, basic stability
KA100	Enabling of IP-Data interface for IPV4
KA150	Extension of IP-Data interface for IPV6

KAC10	VoLTE
KB036	Extended frequency range, 3.3GHz to 6GHz, per RF converter
KM011	TX measurement, IQ Versus Slot (software license)
KM012	TX measurement, Multi Evaluation List Mode / MELM
KM050	IP based measurements
KM200	TX Measurement, GSM/GPRS/EDGE, Uplink
KM201	TX Measurement, EDGE Evolution Extension of KM200 Uplink
KM400	TX Measurement, WCDMA, Uplink
KM401	TX Measurement, WCDMA HSPA Extension of KM400, Uplink
KM403	TX Measurement, WCDMA HSPA+ Extension of KM401, Uplink
KM500	TX Measurement, LTE FDD Release 8
KM550	TX Measurement, LTE TDD (TD-LTE) Release 8
KM650	TX measurement, WLAN IEEE 802.11a/b/g
KM651	TX measurement, WLAN IEEE 802.11n SISO
KM700	TX measurement, WiMAX# IEEE 802.16e
KM750	TX measurement, TD-SCDMA uplink
KM800	TX measurement CDMA2000 1xRTT reverse link
KM880	TX measurement CDMA2000 1xEV-DO Revision 0/A/B reverse link

KS200	Signaling (network emulation), GSM/GPRS/EDGE
KS201	Signaling (network emulation), GSM Release 7 EDGE Evolution
KS203	Signaling (network emulation), GSM Release 9 VAMOS
KS210	Signaling (network emulation), GSM GPRS EDGE Release 6,
KS400	Signaling (network emulation), WCDMA Release 99
KS401	Signaling (network emulation), WCDMA Release 5/6 HSPA
KS403	Signaling (network emulation), WCDMA Release 7 HSPA+, SISO
KS404	Signaling (network emulation), WCDMA Release 8
KS410	Signaling (network emulation), WCDMA Release 99
KS411	Signaling (network emulation), WCDMA Release 5/6 HSPA
KS500	Signaling (network emulation), LTE FDD Release 8, SISO
KS510	Signaling (network emulation), LTE Release 8, SISO
KS520	Signaling (network emulation), LTE MIMO2x2
KS550	Signaling (network emulation), LTE TDD (TD-LTE) Release 8
KS800	Signaling (network emulation)basic CDMA2000 1xRTT
KS810	Signaling (network emulation)advanced CDMA2000 1xRTT
KS880	Signaling (network emulation)basic CDMA2000 1xEV-DO Revision 0/A
KS881	Signaling (network emulation)basic CDMA2000 1xEV-DO Revision B

KS890	Signaling (network emulation)advanced CDMA2000 1xEV-DO Revision 0/A
KT053	GSM/WCDMA, CMWrun sequencer software tool
KT055	LTE, CMWrun sequencer software tool
KT058	CDMA2k 1xRTT/EV-DO sequence
KV110x2	Waveforms for ARB generator, library 1
KV112x2	Waveforms for ARB generator, library 2
PS502	Wideband Radio Communication Tester, Basic Assembly
PS502x1	CMW500 basic assembly (mainframe), including : one RF converter
S550B	Baseband interconnection
S550Bx1	Baseband Interconnection, flexible link,for non-signaling, signaling
S590A	RF Frontend, basic functn
S590Ax1	RF Frontend, basic functionality
S590D	RF Frontend Module advanced
S600B	Front Panel with Display/Keypad
S600Bx1	CMW500 frontpanel with display/keypad CMW module H600B
